SET GfA 80 Nm 60 rpm FU with OPTO

Product description: SET GfA 80 Nm 60 rpm FU with OPTO

Optimise the automation of your doors and gates with the SET GfA 80 Nm 60 rpm FU with OPTO, an advanced and complete drive kit designed to meet all your needs.

Key Features:

• Powerful and Smooth: At the heart of this set is the SE 8.60 FU, which comes with an impressive 80 Nm of torque and a variable rotation speed of 12-60 rpm. This makes it suitable for a wide range of doors and gates. The soft start - soft stop function guarantees smooth and silent operation, reducing wear and tear and extending the life of the operator.

• Compact and Quiet: The SE 8.60 FU is exceptionally compact and produces minimal noise during operation. This makes it ideal for situations where quiet and discreet operation is essential, while at the same time saving space.

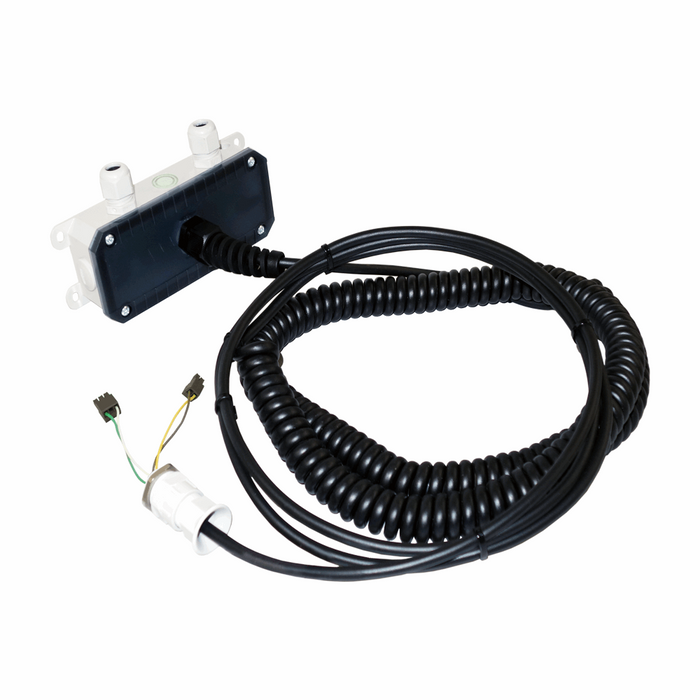

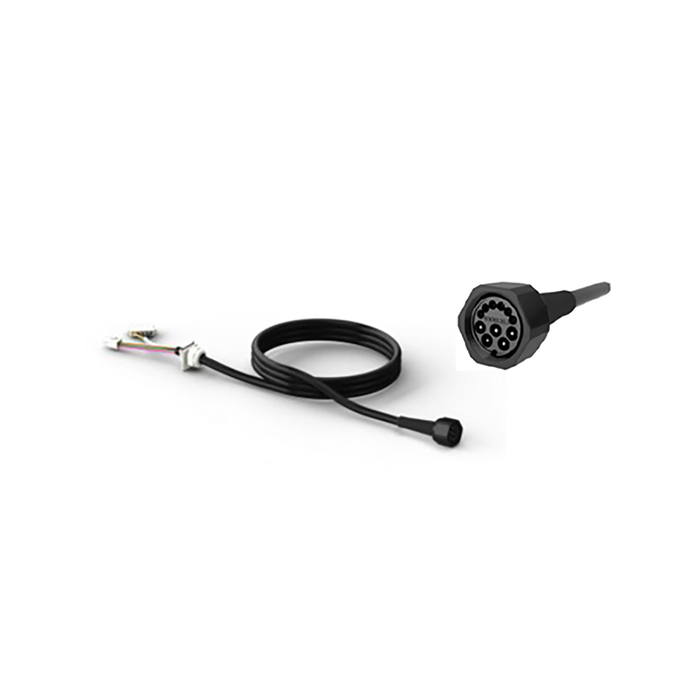

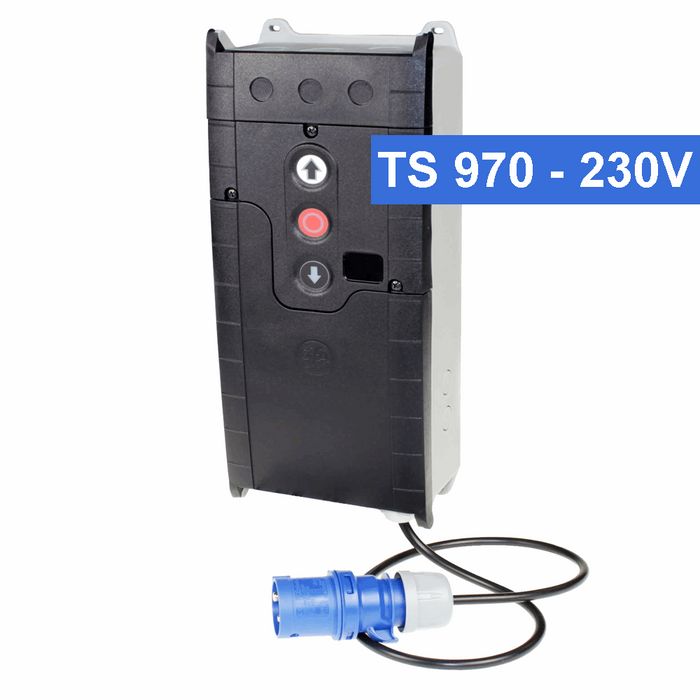

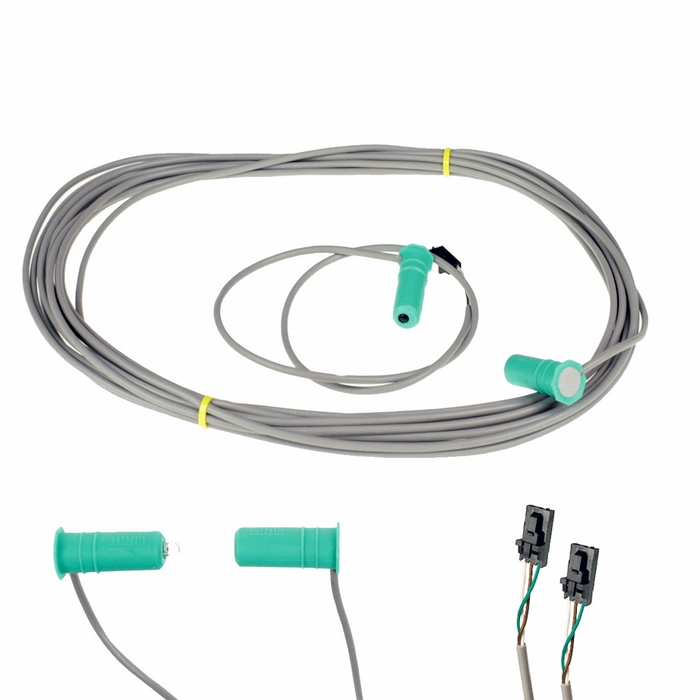

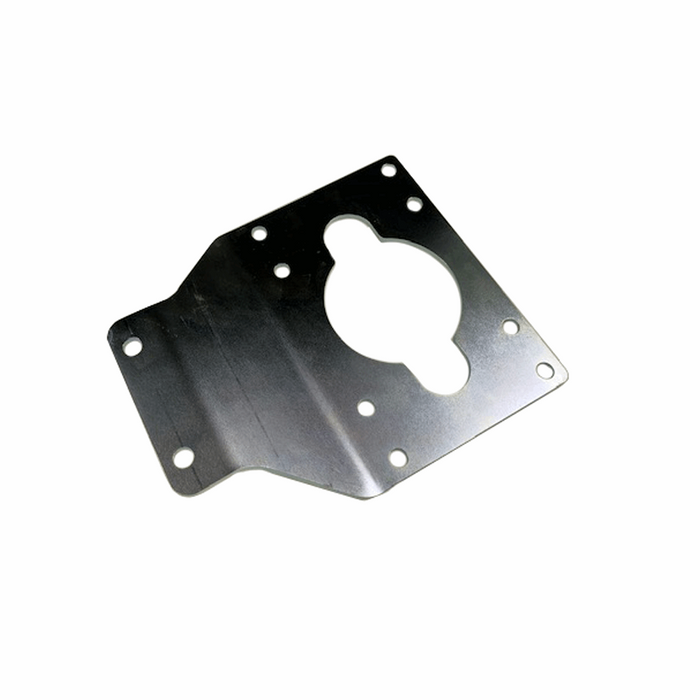

• Complete and Safe Set: This set comes with all necessary components, including the GfA actuator (type SE 8.60-25,40 FU SK), motor support (type A), control box (TS 970-230V), optical under-edge protection and a 7 meter long XES connection cable. This ensures a trouble-free installation and offers comprehensive safety measures for your system.

• Adaptability: The operator is equipped with digital limit switches (DES) and emergency operation using a chain hoist (SK) for maximum control and safety. With a maximum door weight of 300 kg and an IP65 classification, it is suitable for a wide range of applications.

Optional Additions:

• For floor level decoupling you can purchase the optional set 12598.
• If you want to extend the emergency chain, sets 11141 or 12689 are available.

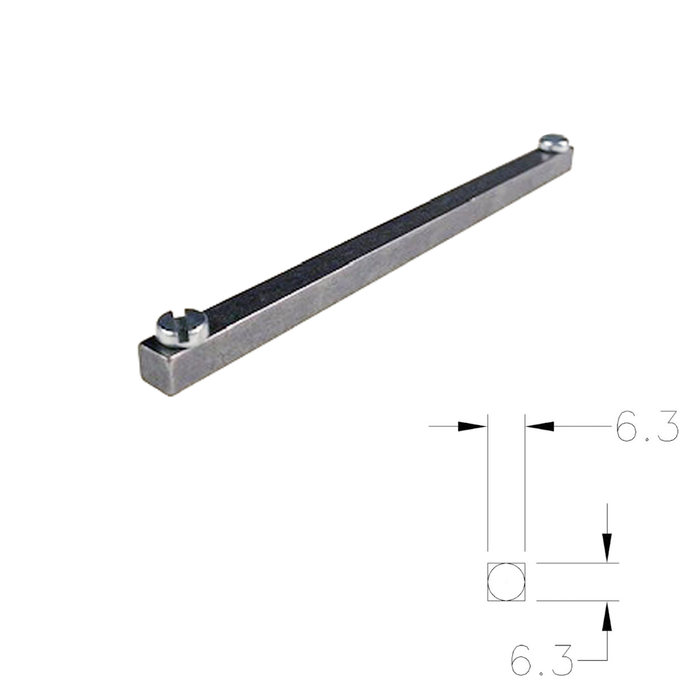

• In case of a hollow shaft (tubular shaft) you can order the key 12910 to adapt the standard supplied square key (12909) for solid shafts.

With the SET GfA 80 Nm 60 rpm FU with OPTO, you will have an advanced and customizable drive solution for your doors and gates. Improve the efficiency and safety of your automation system and place your order today. Don't wait any longer and discover the advantages of this advanced drive set for your specific needs.
