Replacement drive with frequency control suitable for Econoroll

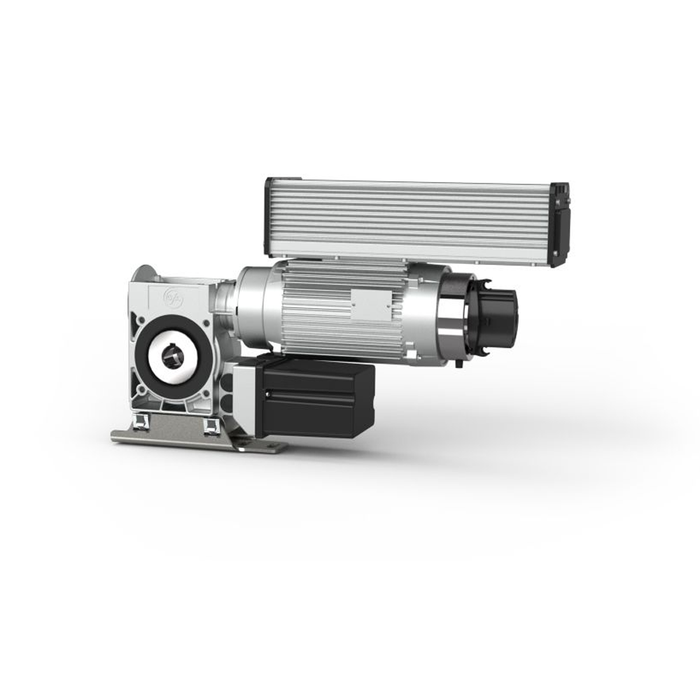

Replacement Drive with Frequency Control for Crawford Econoroll High Speed ​​Doors (E1000 and E1500)

• Frequency control: This drive is equipped with frequency control, which makes the speed of the drive variable and adaptable to different applications. The speed ranges are as follows:

  • Open : 30-180 revolutions per minute (rpm)
  • Close > 2.5 m : 30-90 rpm
  • Close < 2.5 m : 30-90 rpm

• Torque: The drive has a torque of 80 Nm, which indicates the force with which it can open and close the door.

• Shaft Hole: The shaft hole has a diameter of 35mm, which is the size of the shaft used to connect the operator to the door.

• Voltage: The drive is available for both single-phase (1x230V) and three-phase (3x400V) power supplies and is suitable for both 50 Hz and 60 Hz frequencies.

• Mounting on a pendulum base: This drive is designed for mounting on a pendulum base.

• Protection class IP65: The drive has an IP65 rating, which means it is protected against dust and water jets, making it suitable for use in demanding environments.

• Digital Limit Switch DES: This indicates that the operator uses digital limit switches to detect the position of the door when it is fully opened or closed.

• Limit switch range 20: This indicates the accuracy with which the door end positions can be set.

• Emergency crank operation (NHK): Emergency crank operation is available for situations where manual operation is required.

• Catching torque: The operator has a catching torque of 510 Nm, which indicates the force with which it can stop the door when opening or closing.

Included Components:

• Drive
• Control cabinet TS971-230V
• 5 meter connection cable

This complete unit makes it easy to install and operate the drive for Crawford Econoroll E1000 and E1500 high speed doors.

When installing and using this actuator, it is important to carefully follow the manufacturer's instructions and recommendations for safe and efficient operation. It may also be necessary to consult a qualified technician for installation, depending on the complexity of the system.
