Replacement drive without frequency control suitable for Econoroll

Replacement Drive without Frequency Control for Crawford Econoroll High Speed ​​Doors

• Frequency Control: This drive is supplied without frequency control, which means that the speed of the drive is not variable and probably operates at a constant level.

• Torque: The operator has a torque of 45 Nm, which indicates the force with which it can open and close the door.

• Output: The operator has an output of 90 revolutions per minute (rpm), which indicates how fast the operator can open and close the door.

• Shaft Hole: The shaft hole has a diameter of 25mm, which is the size of the shaft used to connect the operator to the door.

• Voltage: The drive operates on a three-phase power supply of 3 x 400 V, which is common for industrial applications.

• Digital Limit Switch DES: This indicates that the operator uses digital limit switches to detect the position of the door when it is fully opened or closed.

• IP54: The drive has an IP54 rating, which means it is dust resistant and protected against splash water from all directions.

• Maximum Door Size: This operator is suitable for door sizes up to 3000 mm x 3000 mm.

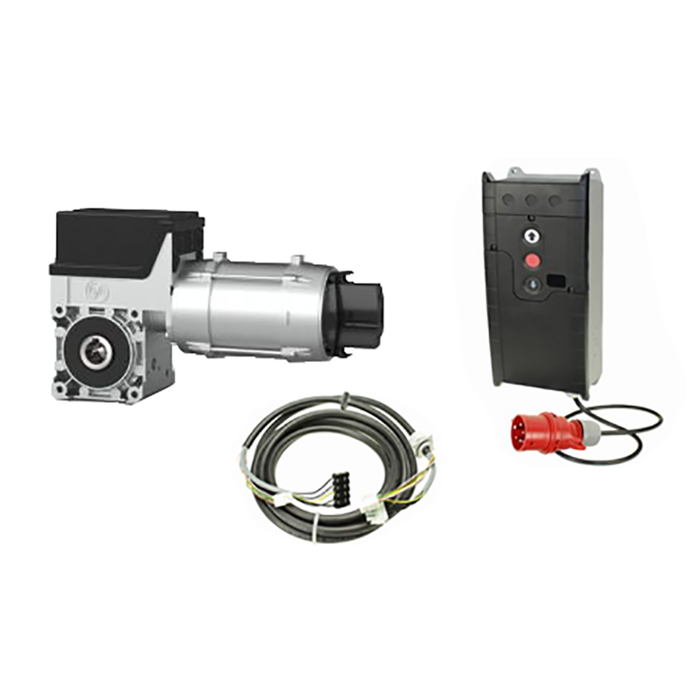

Included Components:

• Drive
• Control cabinet TS971
• 3 meter connection cable

This complete unit makes it easy to install and operate the operator for Crawford Econoroll E500, E1000, E1200 and E1500 high speed doors.

When installing and using this actuator, it is important to carefully follow the manufacturer's instructions and recommendations for safe and efficient operation. It may also be necessary to consult a qualified technician for installation, depending on the complexity of the system.
